Owning a compact tractor means eventually learning lessons the hard way. In my case, a small oversight led to a broken front grille and headlight on my 2024 Kioti DK5320SE. While fixing the damage, I also addressed a bigger issue I had been working around for a while: the lack of proper tie-down points for safely transporting the tractor.
In this post, I’ll walk through what happened, how I repaired the front end, and why upgrading front and rear tie-down points is one of the best safety improvements you can make on a Kioti tractor.
What Went Wrong
The damage happened while moving a pallet of firewood using pallet forks. I did not strap the forks down, and when they tipped forward, they slipped off the loader and came back into the front of the tractor. Without the grill guard installed, the forks struck the grille and headlight assembly.
The result:
- Cracked front grille
- Broken headlight mounting tabs
- Minor hood damage
Fortunately, the grille itself is a replaceable plastic component and was far less expensive than I expected.
Replacing the Kioti DK5320SE Front Grille
The front grille replacement process on the Kioti DK series is very manageable if you take your time and document disassembly.
Key steps include:
- Removing the hood (single bolt and wiring connector)
- Disassembling the grille, trim, and side panels
- Transferring all hardware and mounting points to the new grille
- Reinstalling headlights before final grille placement
- Reassembling trim, panels, and weather stripping
The replacement grille cost was approximately $130, which is reasonable for a molded exterior component. The headlights were repairable by reattaching broken mounts rather than replacing the entire assembly.
Why Kioti Tractors Need Better Tie-Down Points
One thing that became clear while owning multiple Kioti tractors is that factory tie-down options are limited. If you transport your tractor on a trailer, proper tie-down points are critical for safety and compliance.
Relying on improvised strap locations or loader components is not ideal and can lead to damage or unsafe transport conditions.

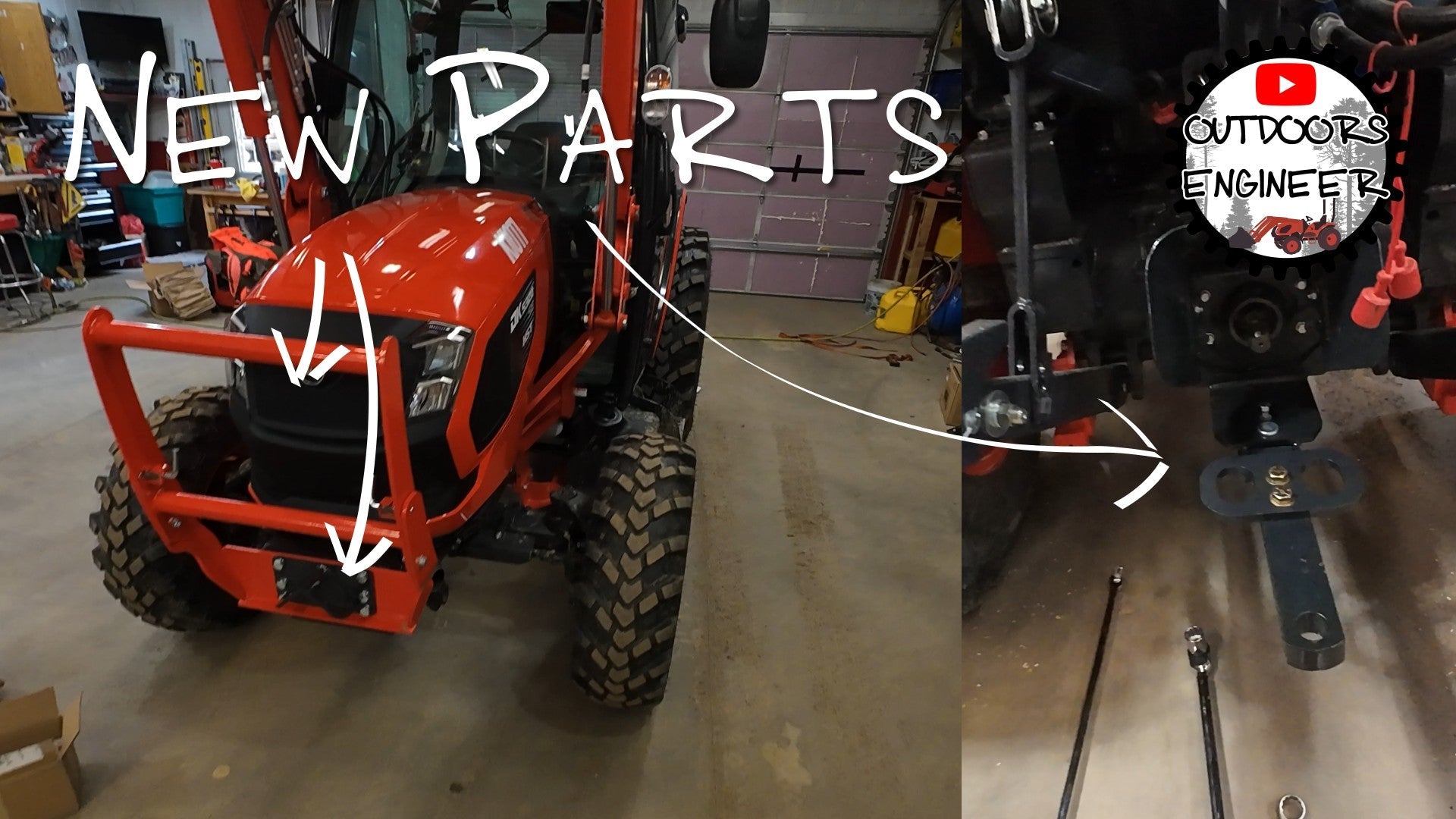

Installing Front and Rear Tie-Down Points
Front Tie-Down Point
- Mounts using the factory grill guard bolt locations
- Uses a six-hole design for better compatibility across Kioti models
- Heavy-gauge steel with clean welds
- Provides a solid anchor point for straps or chains
Rear Tie-Down Point
- Bolts directly to the drawbar
- Uses high-quality hardware
- Torqued to 125 ft-lbs
- Simple, strong, and effective
These tie-down points dramatically improve confidence when hauling the tractor and eliminate the guesswork involved with securing it to a trailer.
Snowblower Clearance Considerations
For tractors equipped with a front-mounted snowblower, it’s important to note that the grill guard and tie-down assembly slightly protrude below the frame. On my setup, this interferes with the snowblower subframe.
While modifications are possible, I chose to leave the grill guard intact to preserve its structural integrity. This is a trade-off worth considering depending on how often you switch between attachments.
Final Thoughts
Breaking equipment is never fun, but it often leads to improvements that should have been done earlier. Replacing the front grille restored the tractor cosmetically, while installing proper tie-down points made it safer and more practical to transport.
If you own a Kioti CK, DK, NS, or NX series tractor and haul it regularly, adding dedicated tie-down points is a worthwhile upgrade.
